The new Subaru Crosstrek integrates a comprehensive suite of standard safety systems designed to enhance driver awareness, support collision avoidance, and protect occupants. These systems combine camera-based perception, radar sensing, electronic control units, and structural engineering to deliver active and passive safety functions.

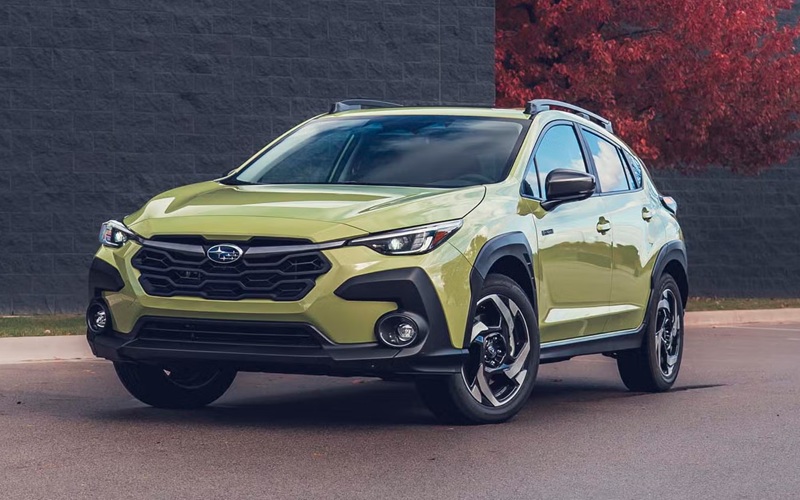

2026 Yellow Subaru Crosstrek
Crosstrek Core Active Safety Platform
Stereo Camera-Based Perception System
The Crosstrek uses a dual-camera system mounted near the upper windshield to create a stereoscopic field of view. This setup enables depth perception by calculating the disparity between the two camera images. The system continuously analyzes:
- Relative distance to objects (in metres)
- Object shape and classification (vehicles, pedestrians, cyclists)
- Speed differential
The cameras operate in the visible light spectrum and are optimized for forward detection within a range of approximately 0.5 to 110 metres, depending on object size and environmental conditions.
Radar Sensor Integration
In addition to cameras, rear-mounted radar sensors provide lateral and rearward detection. These sensors emit radio waves and measure reflected signals to determine:
- Object velocity using Doppler shift
- Distance and angle relative to the vehicle
Radar systems are less affected by low light or weather conditions, complementing the camera-based system.
Collision Avoidance Systems
Pre-Collision Braking System
This system continuously monitors the road ahead. When a potential collision is detected, it performs a multi-stage response:
- Visual and audible warnings to the driver
- Brake pre-charge to reduce response time
- Automatic braking force application if no driver input is detected
The braking force is modulated based on closing speed and distance to either avoid the collision or reduce the impact severity.
Pre-Collision Throttle Management
If the system detects an obstacle in front of the vehicle while the accelerator is pressed, it limits engine output. This is particularly relevant in low-speed scenarios such as parking or stop-and-go traffic.
Autonomous Emergency Steering Support
At moderate speeds, the system can assist with steering input if braking alone is insufficient. It calculates an avoidance path based on lane markings and surrounding obstacles, then applies controlled steering torque.
Adaptive Driving Assistance
Adaptive Cruise Control (ACC)
The adaptive cruise control system maintains a set speed while automatically adjusting to traffic conditions. Using camera and radar inputs, it:
- Maintains a safe following distance (adjustable in seconds or metres)
- Applies throttle and braking to match the speed of the vehicle ahead
- Operates within a defined speed range, typically from 0 km/h to highway speeds
In stop-and-go traffic, the system can bring the vehicle to a complete stop and resume movement when traffic flows again.
Lane Centering Control
Lane centering uses visual lane detection algorithms to identify road markings. The system calculates the vehicle’s position relative to lane boundaries and applies continuous steering corrections to keep the vehicle centered.
This function relies on:
- High-contrast lane markings
- Predictive path modeling
- Electric power steering actuation
Lane Safety Systems
Lane Departure Warning (LDW)
The system monitors lane markings and alerts the driver if the vehicle begins to drift without the turn signal being activated. Alerts are delivered via:
- Audible tones
- Visual indicators in the instrument cluster
Lane Departure Prevention (LDP)
If drift continues after a warning, the system applies corrective steering torque to guide the vehicle back into its lane. The intervention remains subtle while still effective.
Lane Keep Assist (LKA)
Lane Keep Assist works continuously at higher speeds, maintaining vehicle alignment within the lane through small steering inputs. Unlike LDP, which reacts to deviations, LKA operates proactively.
Blind Spot and Rear Monitoring
Blind Spot Detection (BSD)
Rear radar sensors monitor adjacent lanes for vehicles approaching from behind. If a vehicle enters the blind spot zone, a visual indicator appears on the corresponding side mirror.
Lane Change Assist
When the driver activates a turn signal while a vehicle is detected in the blind spot, the system provides an additional warning through flashing indicators and audible alerts.
Rear Cross-Traffic Alert (RCTA)
During reversing, the system detects approaching vehicles from either side. It calculates trajectory and time-to-collision, issuing warnings if a potential conflict is identified.
Driver Monitoring System
Infrared Driver Monitoring Camera
A near-infrared camera positioned on the dashboard tracks the driver’s face and eye movements. The system evaluates:
- Eye gaze direction
- Blink rate
- Head position
If signs of distraction or drowsiness are detected, the system issues alerts.
Facial Recognition Functionality
The system can store driver profiles and adjust vehicle settings such as seat position and climate control. While primarily a convenience feature, it also ensures optimal driving posture for safety.
Structural Safety Engineering
Reinforced Body Structure
The Crosstrek uses a high-strength steel frame designed to distribute impact forces away from the passenger cabin. Key characteristics include:
- Ring-shaped reinforcement structures
- Load paths that redirect energy to non-occupant areas
- Controlled deformation zones (crumple zones)
Energy Absorption Design
Front and rear structures absorb kinetic energy progressively. This reduces deceleration forces experienced by occupants during a collision.
Passive Safety Systems
Airbag System Configuration
The vehicle includes multiple airbags:
- Front airbags for driver and passenger
- Side-impact airbags integrated into the seats
- Curtain airbags covering side windows
- Knee airbag for the driver
Each airbag deploys based on sensor input, including impact angle, severity, and occupant position.
Seatbelt Pre-Tensioners and Load Limiters
Seatbelt systems are equipped with:
- Pre-tensioners that tighten the belt immediately upon collision detection
- Load limiters that release tension gradually to reduce chest injury risk
Braking and Stability Control
Anti-Lock Braking System (ABS)
ABS prevents wheel lock-up during hard braking by modulating brake pressure. This maintains steering control and reduces stopping distance on low-friction surfaces.
Electronic Stability Control (ESC)
ESC monitors vehicle dynamics using sensors that track:
- Yaw rate
- Steering angle
- Wheel speed
If instability is detected, the system selectively applies braking to individual wheels and adjusts engine output to restore control.
Traction Control System (TCS)
TCS prevents wheel spin during acceleration by reducing engine torque or applying braking to slipping wheels.
Lighting and Visibility Safety
Automatic High Beam Control
The system switches between high and low beams based on oncoming traffic and ambient light conditions, improving nighttime visibility without causing glare.
Steering Responsive Headlights
Headlights adjust their direction based on steering input, illuminating the vehicle’s path during cornering.
Integration and Control Architecture
All Crosstrek safety systems have interconnected electronic control units (ECUs). These units communicate via a high-speed vehicle network, allowing:
- Real-time data sharing between sensors
- Coordinated system responses
- Redundancy for critical functions
Software algorithms continuously process sensor data, enabling predictive and adaptive safety responses.
2026 Subaru Crosstrek FAQ
Does the 2026 Subaru Crosstrek include adaptive cruise control as standard?
- Yes, adaptive cruise control is standard and uses camera and radar inputs to maintain a set speed and following distance, including stop-and-go functionality.
What type of sensors are used for forward collision detection?
- The system uses stereo cameras mounted near the windshield, supported by radar sensors, to detect objects and calculate distance and speed.
Are lane-keeping features active at all speeds?
- Lane centering and lane keep assist typically operate at moderate to higher speeds, while lane departure warning can function across a broader speed range.
How does the driver monitoring system detect fatigue?
- An infrared camera tracks eye movement, blink rate, and head position to identify signs of drowsiness or distraction and issues alerts accordingly.
What passive safety features are included?
- The vehicle includes multiple airbags, reinforced structural components, and seatbelt systems with pre-tensioners and load limiters to protect occupants during a collision.
