The Subaru Forester uses a fully independent suspension system engineered to balance ride comfort, handling stability, and off-road capability. The configuration integrates front and rear independent assemblies, tuned dampers, and structural mounting points within the vehicle platform.

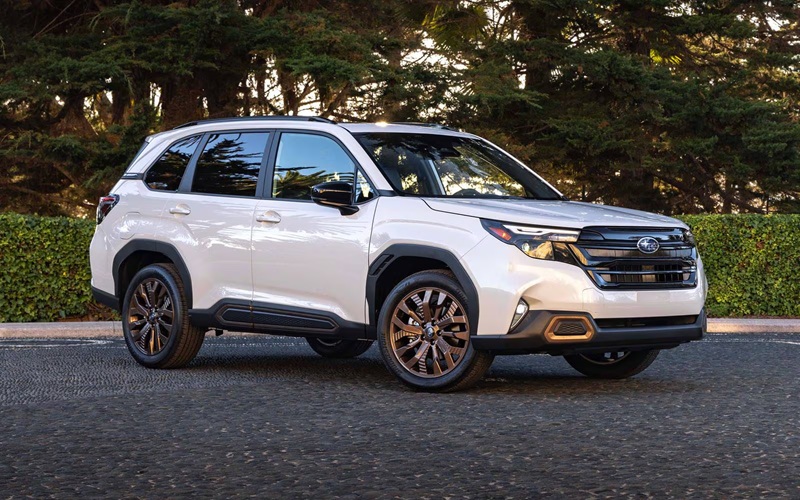

2026 White Subaru Forester
Suspension Architecture Overview
The Forester suspension system has a fully independent layout on both axles. Independent suspension means that vertical movement of one wheel does not directly affect the opposite wheel on the same axle. This improves ride comfort and traction by allowing each wheel to respond individually to road irregularities.
The system integrates with the vehicle’s global platform, which provides mounting rigidity and optimized load distribution. Suspension geometry is calibrated to maintain consistent tire contact during acceleration, braking, and cornering.
Front Suspension System
MacPherson Strut Configuration
The front suspension uses a MacPherson strut design, a compact system that combines multiple functions into a single assembly. Each front wheel is connected through:
- A strut assembly (damper + coil spring)
- A lower control arm
- A steering knuckle
- A stabilizer (anti-roll) bar
The strut serves as both a structural support and a damping unit, connecting the wheel hub to the vehicle body.
Key Components
Coil Spring
The coil spring supports the vehicle’s weight and absorbs vertical loads. It compresses when encountering bumps and extends when the load is reduced, maintaining ride height and absorbing energy.
Gas-Filled Damper (Shock Absorber)
The damper controls spring oscillations by dissipating kinetic energy as heat through hydraulic resistance. Gas pressurization reduces fluid aeration, ensuring consistent damping performance under repeated motion.
Lower Control Arm
The lower control arm connects the wheel assembly to the chassis and allows controlled movement in a vertical arc. It also maintains alignment angles such as camber and caster during suspension travel.
Stabilizer Bar
The stabilizer bar links the left and right suspension arms. During cornering, it resists body roll by transferring force between sides, improving lateral stability.
Rear Suspension System
Double Wishbone Configuration
The rear suspension uses a double-wishbone design, also known as a multi-link configuration in some implementations. This configuration includes two lateral arms (upper and lower) that control wheel movement more precisely than simpler designs.
Each rear wheel is connected via:
- Upper and lower control arms
- Coil spring and damper assembly
- Lateral links
- Stabilizer bar
Geometry and Motion Control
The double wishbone layout allows independent control of camber angle during suspension travel. As the wheel moves upward or downward, the geometry maintains optimal tire contact with the road surface.
This is particularly important during:
- Cornering, where lateral forces are high
- Uneven terrain, where wheel articulation is required
- Load changes, such as cargo or passenger weight
Suspension Functionality
Vertical Load Absorption
The suspension system absorbs vertical forces generated by road irregularities. When a wheel encounters a bump:
- The wheel moves upward relative to the chassis
- The coil spring compresses, storing energy
- The damper dissipates this energy to prevent oscillation
This process reduces vibrations transmitted to the cabin.
Tire Contact Optimization
Maintaining consistent tire contact is critical for traction and braking. The independent suspension allows each wheel to adapt to surface variations without affecting others.
The system maintains:
- Contact patch stability
- Even load distribution across tires
- Predictable handling response
Body Motion Control
The suspension limits excessive body movement in three axes:
- Pitch (forward/backward tilt during braking or acceleration)
- Roll (side-to-side tilt during cornering)
- Heave (vertical movement)
Dampers and stabilizer bars work together to control these motions.
Integration with All-Wheel Drive System
The Forester suspension operates in conjunction with its symmetrical all-wheel drive system. The layout ensures that torque delivery remains stable across all four wheels by maintaining consistent ground contact.
Rear suspension geometry accommodates the rear differential and drive shafts without compromising wheel articulation. Mounting points are reinforced to handle torque loads transmitted through the drivetrain.
Ground Clearance and Suspension Travel
The suspension system provides increased ground clearance compared to standard passenger vehicles. This happens through:
- Longer suspension travel
- Elevated mounting points
- Spring and damper calibration
Greater travel allows the wheels to move over obstacles without transferring excessive force to the body structure.
Bushing and Mounting Systems
Elastomeric Bushings
Rubber or elastomeric bushings are used at connection points between suspension components and the chassis. These bushings:
- Isolate vibrations
- Reduce noise transmission
- Allow controlled flexibility
Subframe Integration
Both front and rear suspension systems are mounted to subframes. These subframes provide:
- Structural rigidity
- Isolation from the main body
- Simplified load distribution
The subframe design improves durability and reduces stress concentrations.
Steering and Suspension Interaction
The front suspension integrates with an electric power steering system. Steering inputs are transmitted through the steering rack to the wheel assemblies.
Suspension geometry ensures that:
- Steering angles remain consistent during travel
- Bump steer is minimized
- Feedback to the driver is stable
Electronic Control Systems Interaction
Vehicle Dynamics Control (VDC)
The suspension system works alongside electronic stability systems. Sensors monitor:
- Wheel speed
- Steering angle
- Yaw rate
If instability is detected, braking and engine output adjustments are applied. The suspension provides the mechanical foundation that allows these corrections to be effective.
Traction Control System (TCS)
Traction control relies on consistent tire contact. The independent suspension ensures that wheels maintain grip, allowing the system to manage torque distribution efficiently.
Durability and Load Handling
The suspension handles varying loads, including passengers and cargo. Spring rates and damper tuning are selected to maintain ride height and stability under load.
Materials used in suspension components include:
- High-strength steel for control arms
- Corrosion-resistant coatings
- Reinforced mounting brackets
These materials contribute to long-term durability under different driving conditions.
Noise, Vibration, and Harshness (NVH) Control
The suspension system plays a key role in reducing noise and vibration. NVH control is achieved through:
- Damper tuning
- Bushing design
- Subframe isolation
These elements reduce the transmission of road noise into the cabin while maintaining structural integrity.
2026 Subaru Forester FAQ
What type of front suspension does the 2026 Subaru Forester use?
- The vehicle uses a MacPherson strut front suspension, combining a coil spring and damper into a single structural unit.
How does the rear double wishbone suspension improve handling?
- It allows precise control of wheel alignment in motion, maintaining better tire contact and improving stability in corners.
Is the suspension system fully independent?
- Yes, both front and rear suspensions are independent, allowing each wheel to move separately from the others.
What role do stabilizer bars play in the suspension system?
- Stabilizer bars reduce body roll by distributing forces between the left and right sides during cornering.
How does the suspension support off-road driving?
- It provides increased ground clearance and extended suspension travel, allowing wheels to adapt to uneven terrain while maintaining traction.
