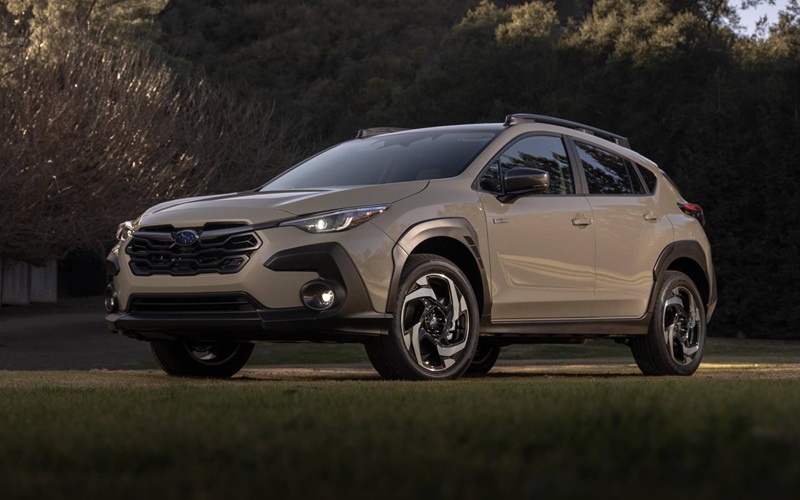

The Subaru Crosstrek uses the Subaru Symmetrical All-Wheel Drive system across its trim range. This drivetrain layout is a core mechanical feature of the model. It combines a longitudinally mounted BOXER engine with a full-time all-wheel drive system designed around a symmetrical drivetrain layout.

Symmetrical Layout Architecture



The Symmetrical AWD system refers to the physical alignment of the drivetrain components.



Core Elements

• Horizontally opposed SUBARU BOXER engine
• Longitudinal engine placement
• Transmission aligned with the crankshaft
• Front and rear driveshafts arranged symmetrically

The engine sits low in the engine bay. The transmission connects directly behind the engine. The front differential and rear driveshaft align along the centreline of the vehicle.

This balanced layout reduces lateral weight offset and supports consistent torque delivery to both axles.



Full-Time All-Wheel Drive Configuration



The Crosstrek uses a full-time AWD system. Power is continuously sent to all four wheels. There is no manual selection between two-wheel drive and four-wheel drive.



System Characteristics

• Permanent engagement of front and rear axles
• Automatic torque distribution
• Electronic control integration

The system monitors wheel speed, throttle input, and traction conditions. It adjusts torque distribution without driver intervention.



Transmission-Based Torque Distribution



The torque split depends on the transmission type.



Lineartronic Continuously Variable Transmission (CVT)

Most Crosstrek trims use the Lineartronic CVT.

With the CVT, the AWD system uses an electronically controlled multi-plate transfer clutch.

Key features:

• Active torque management
• Variable front-to-rear torque distribution
• Electronic clutch engagement

Under normal driving conditions, torque distribution remains primarily front-biased. When wheel slip occurs, the system increases torque transfer to the rear axle.



Mechanical Components

• Transfer clutch assembly
• Front differential
• Rear differential
• Driveshaft

The electronically controlled clutch regulates torque transfer between axles.



BOXER Engine Integration



The Symmetrical AWD system works in combination with the SUBARU BOXER engine.



Engine Characteristics

• Horizontally opposed cylinder layout
• Low centre of gravity
• Balanced piston movement

The flat engine design allows the crankshaft to align directly with the transmission. This direct alignment reduces the need for offset driveshaft routing.

In the Crosstrek lineup, available engines include:

• 2.0-litre BOXER engine
• 2.5-litre BOXER engine

Both engines pair with the Lineartronic CVT and the Symmetrical AWD system.



Active Torque Management



Active Torque Management controls torque flow between the front and rear wheels.



Operating Principles

• Sensors detect wheel speed differences
• Electronic control unit adjusts clutch pressure
• Torque shifts rearward when traction decreases

The system reacts automatically. There is no driver-operated differential lock.

Torque distribution remains variable rather than fixed.



X-MODE Integration



Select Crosstrek trims include X-MODE.



X-MODE Function

X-MODE adjusts vehicle systems for low-traction conditions.

System adjustments include:

• Throttle mapping changes
• Transmission ratio control
• Increased AWD clutch engagement
• Hill descent control activation

X-MODE increases torque transfer to the rear wheels when traction is limited. It also modifies traction control and stability control parameters.

Dual-function X-MODE is available on certain trims equipped with the 2.5-litre engine. This configuration may include settings for snow, dirt, or deep snow and mud conditions.



Hill Descent Control



Hill Descent Control is integrated with X-MODE.



System Operation

• Maintains controlled speed on steep descents
• Uses braking system automatically
• Works at low speeds

The AWD system maintains torque distribution while the braking system regulates descent speed.



Ground Clearance and AWD Compatibility



The Crosstrek offers approximately 220 mm of ground clearance.

This clearance, combined with the Symmetrical AWD system, supports traction on uneven surfaces.

Ground clearance remains constant because the Crosstrek uses a fixed suspension height rather than an adjustable air suspension.



Differential Configuration



The Crosstrek uses open differentials with electronic control assistance.



Front and Rear Differentials

• Open front differential
• Open rear differential
• Electronic traction control support

If one wheel loses traction, the traction control system applies braking force to the slipping wheel. This action redirects torque to the wheel with grip.

There is no mechanical locking differential in the standard configuration.



Stability and AWD Coordination



The Symmetrical AWD system integrates with:

• Vehicle Dynamics Control
• Traction control system
• Anti-lock braking system

These systems share sensor data. When slip occurs, braking intervention and torque redistribution work together.

This coordinated approach allows controlled traction management without manual driver input.



Drivetrain Weight Distribution



The symmetrical layout contributes to balanced weight distribution across the vehicle.



Structural Benefits

• Reduced drivetrain vibration
• Straight-line torque delivery
• Centralized mass alignment

The engine, transmission, and driveshaft align along the centre axis. This configuration reduces uneven lateral weight bias.



Fuel Efficiency Considerations



The full-time AWD system operates continuously. There is no disconnect mechanism to switch to front-wheel drive only.

Torque distribution varies electronically to optimize efficiency during steady driving conditions.

The CVT supports engine speed management to balance performance and fuel use.



Comparison With Part-Time AWD Systems



The Crosstrek system differs from part-time AWD systems that:

• Operate primarily in two-wheel drive
• Engage rear wheels only after slip detection
• Use manual engagement in some vehicles

The Symmetrical AWD system maintains constant connection between the front and rear axles.



Maintenance Requirements



The AWD system requires routine maintenance.



Service Elements

• Rear differential fluid replacement
• CVT fluid inspection or replacement as specified
• Driveshaft inspection

Service intervals depend on driving conditions and manufacturer recommendations.



Summary of System Components



The Subaru Crosstrek Symmetrical AWD system includes:

• Longitudinally mounted BOXER engine
• Lineartronic CVT
• Electronically controlled multi-plate transfer clutch
• Open front and rear differentials
• Active Torque Management
• Integration with stability and traction systems

Torque distribution remains variable and automatic. The system functions continuously without driver selection.



Questions and Answers

Does the 2026 Crosstrek use full-time all-wheel drive?

• Yes. The Symmetrical AWD system operates full-time, sending power to all four wheels.

What type of transmission pairs with the AWD system?

• The system pairs with the Lineartronic continuously variable transmission.

Does the Crosstrek use a mechanical locking differential?

• No. It uses open differentials with electronic traction control assistance.

What feature increases traction in low-grip conditions?

• X-MODE increases torque transfer and adjusts vehicle systems for low-traction surfaces.

How much ground clearance does the Crosstrek offer?

• It offers approximately 220 mm of ground clearance.
